General Cocks Egg Incubator







Description Capacity Parts Setting Packing

General cocks with 5 turning gearboxes, ( each shelves has a separate gearbox without any disturbing noise) ;
Suitable for incubation different kind of birds: chicken, quail, duck, goose, pheasant,…
Useful utilization of fertilized eggs
Easy to operate
It is equipped with 2 digital thermo controllers with accuracy 0.1 degree and adjustable
It is equipped with 2 digital hydro controllers with accuracy 1% and adjustable
It is equipped with an analog thermostat
It is equipped with an analog hydro controller
Voltage 220 volt
It is equipped with an ultrasonic mist maker ( humidifier)
It is equipped with an emergency humidity element
It is equipped with USB sensors
Ability to hatch ostrich eggs
It has a double-layer Acrylic glass
It is equipped with a permanent fan, replaceable





Body is made of PVC.
wood or metal has not been used in the machine, so it's lifetime is more than 20 years

جهازنا يعمر اکثر من عشرين سنه کونه لا من معدن و لا من خشب انما يصنع من المواد بی وی سی pvc


Our machines' body is made of the material similar to vacuum cleaners or washing machines

الغسالات أو الکهربائیة المکانس من التی نفس المواد من أجهزتنا لدی يتکون جسم الحائظ



Find its capacity in the capacity section

Main thermo controller Digital, accuracy 0.1 degree
Main hydro controller Digital, accuracy 1%
Emergency thermo controller Analog
Emergency hydro controller Analog
Fixed and movable valves for ventilation of contaminated air
Fresh air inlets
Rotating system Automatic
Separate rotation system for each shelf
Turning gearboxes 5
Three kinds of egg tray for small, medium and large eggs
Indicator lights of gearboxes operation
ventilation system Permanent
Heater elements 2 Heater, 220 volt
Consumption Low, (130 watt)
Body PVC
two-layer insulation
Door two-layer Acrylic glass
Watching eggs easily
hatchery baskets 5 Separate basket
Washable water container
One year warranty
Five years aftersales service

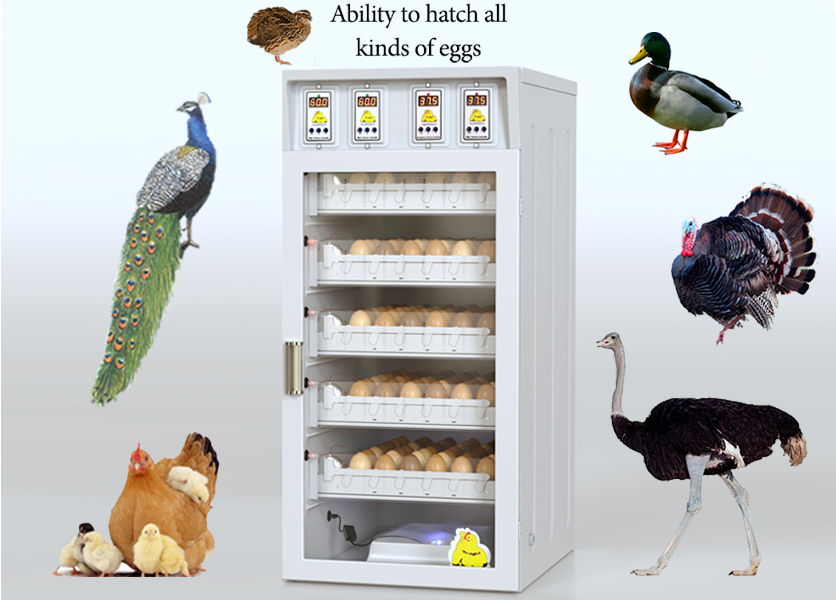

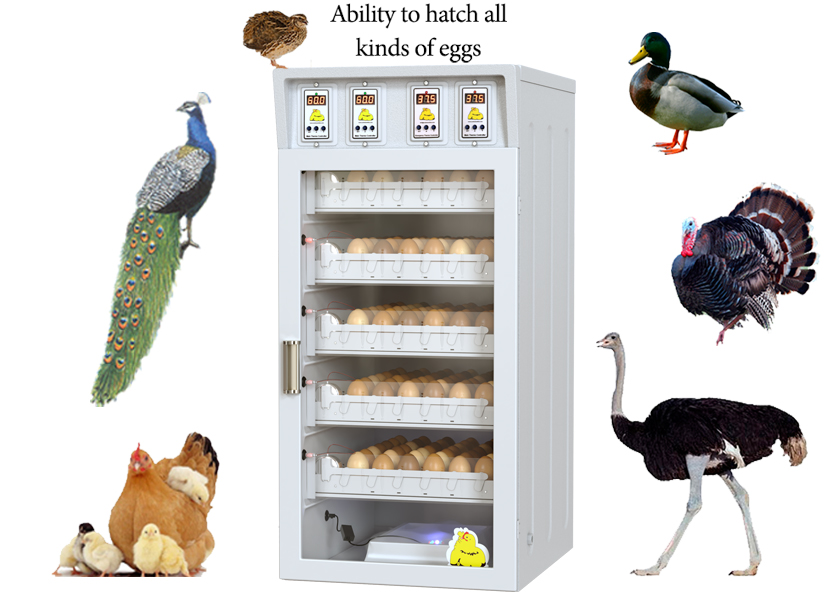

Ability to hatch all kinds of birds
Voltage 220 volt/AC
Ability to work with car battery
Ability to hatch ostrich eggs
Washable body
Egg candler
Training CD
Manual
Ability to use as a recovery unit and artificial mother



Differences between our egg incubators and other ones


Easy & Green & Gala & Mega & Uni cocks

Other egg incubators

حاضنات اخری

Low power consumption (70- 140 W)

انخفاض استهلاک الطاقة .

(70-140 W)

High power consumption (500-2000 W)

استهلاک الطاقة العالیة.

(500-2000 W)

Insulation thickness is 30 mm

سمک العزل هو 30mm

Insulation thickness is 3mm

سمک العزل هو 3mm

Each shelf has separate gearbox
Easy cocks: 3 gearboxes
Green cocks: 5 gearboxes
Gala cocks: 10 gearboxes
Mega cocks: 20 gearboxes
Uni cocks : 40 gearboxes

It has only 1 gearbox for all shelves

توجدعلبة التروس واحدة لجميع الرفوف

Body is made of ABS (Like washing machine or refrigerator)

يتکون الجسم منABS (مثل غسالة أو ثلاجة)

Body is made of wood or metal and will damage because of humidity

يتکون الجسم من الخشب و يتضرر بالرطوبة

User can wash body after each period

يمکن للمستخدم غسل جسيمة الحضانة بعد کل فترة

Body is not washable

الجسم ليس قابل للغسل

There are double controller for temperature & humidity for emergency and back up

هناک رقم مزدوج لوحدة تحکم لدرجة الحرارة و الرطوبة فی حالة الطواریء

There is not any controller for emergency

ليست هناک أی وحدة تحکم فی حالة الطوارئ

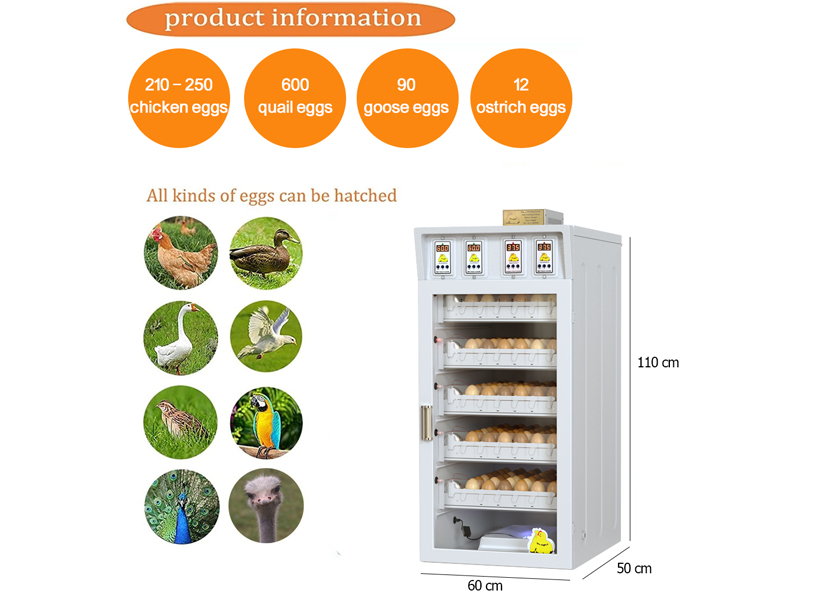

Capacity of chicken egg 210 eggs
Capacity of pheasant egg 210 eggs
Capacity of quail egg 600 eggs
Capacity of goose egg 90 eggs
Capacity of duck egg 90 eggs

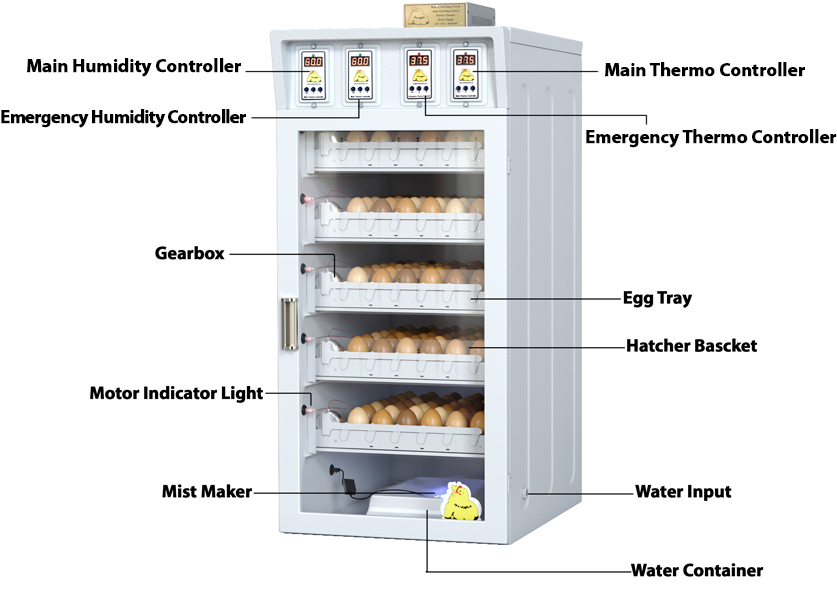

1.Thermo controllers

2. Hydro controllers

3. Power cable

4. Mist maker (humidifier)

5.Emergency humidity element

6.Heater elements

7. Blower (fan)

8. Gearbox signal

9. Turning gearbox

10. Egg tray

11. Hatchery basket

12. Egg Candler


Humidity adjustment method :

Hold the set button for a few seconds;
Adjust the humidity with ▲ ▼
Press the "set" button and exit.

Temperature adjustment method:

Hold the "set" button for a few seconds ;
Adjust third digit with ▼ button .
press the ▲ button and adjust the middle number with ▼ button .
Press the ▲ button again to adjust the first number .
Press the "set" button and exit
All the settings have been done in the factory, do not change the setting.


Weight: 40 kg
Dimensions: 50*60*105 cm
